Caméra de surveillance extérieure PTZ IP WiFi HD 5MP/3MP, dispositif de sécurité sans fil, étanche,

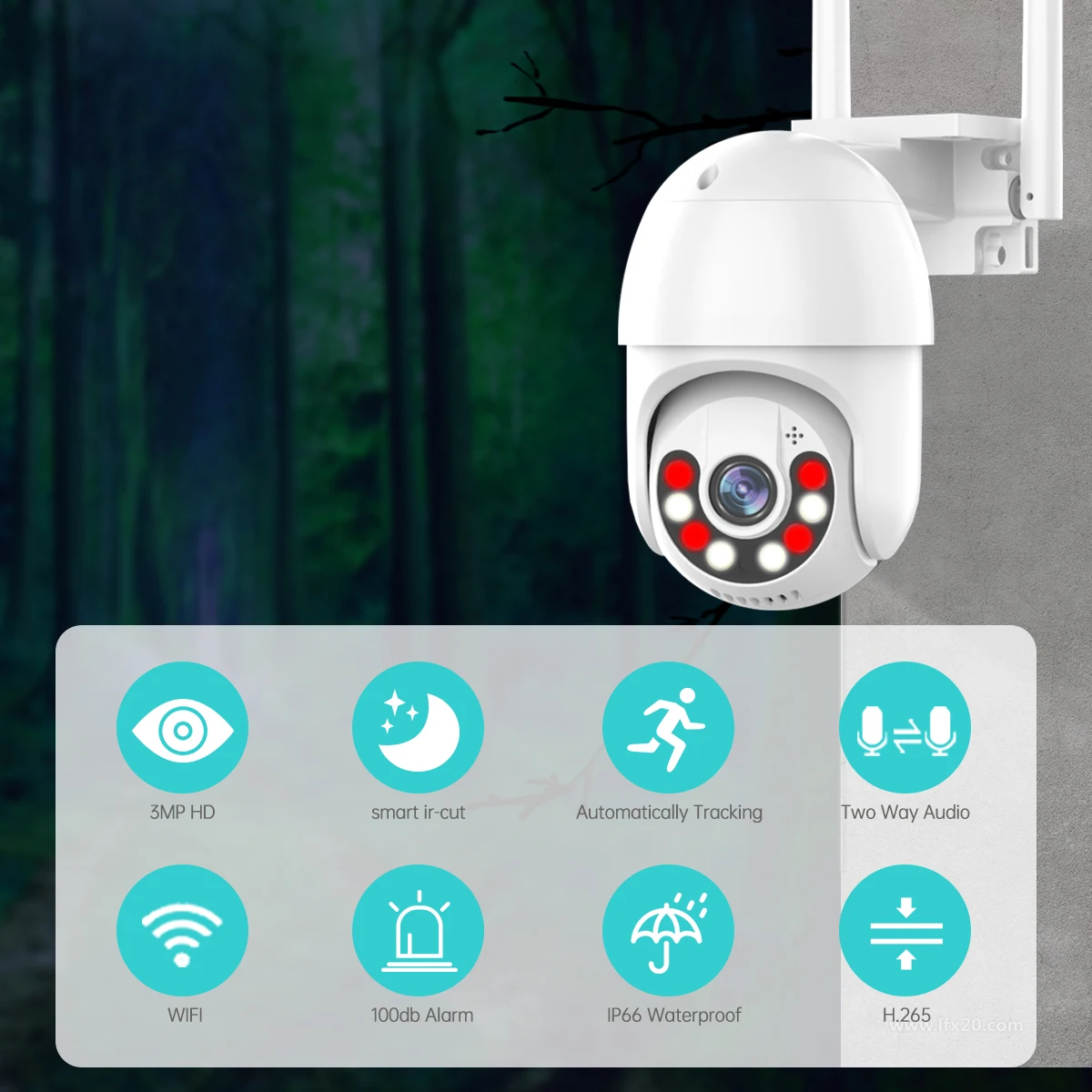

Main Features:

Type: WiFi Camera / Wireless Camera / CCTV Camera / Audio Camera / Infrared Camera / Video / video surveillance / Speed Zoom Camera /IP Camera/PTZ Camera

● Smart AI Humanoid detection: mixing line, area, two-way flow detection, the item triggers no alarm(only 5MP supports higher grade humanoid tracking, 3MP has normal motion detection only)
● Support DIY Alert Voice and Alarm Bell / Customized new speakers with loud volume (4w high power)
● Alarm Notification: APP messages notification, notification push(parts of phone brand supported, email notification not supported)
● Three Night modes Setting: IR mode, full-color infrared night vision, timed full color mode;

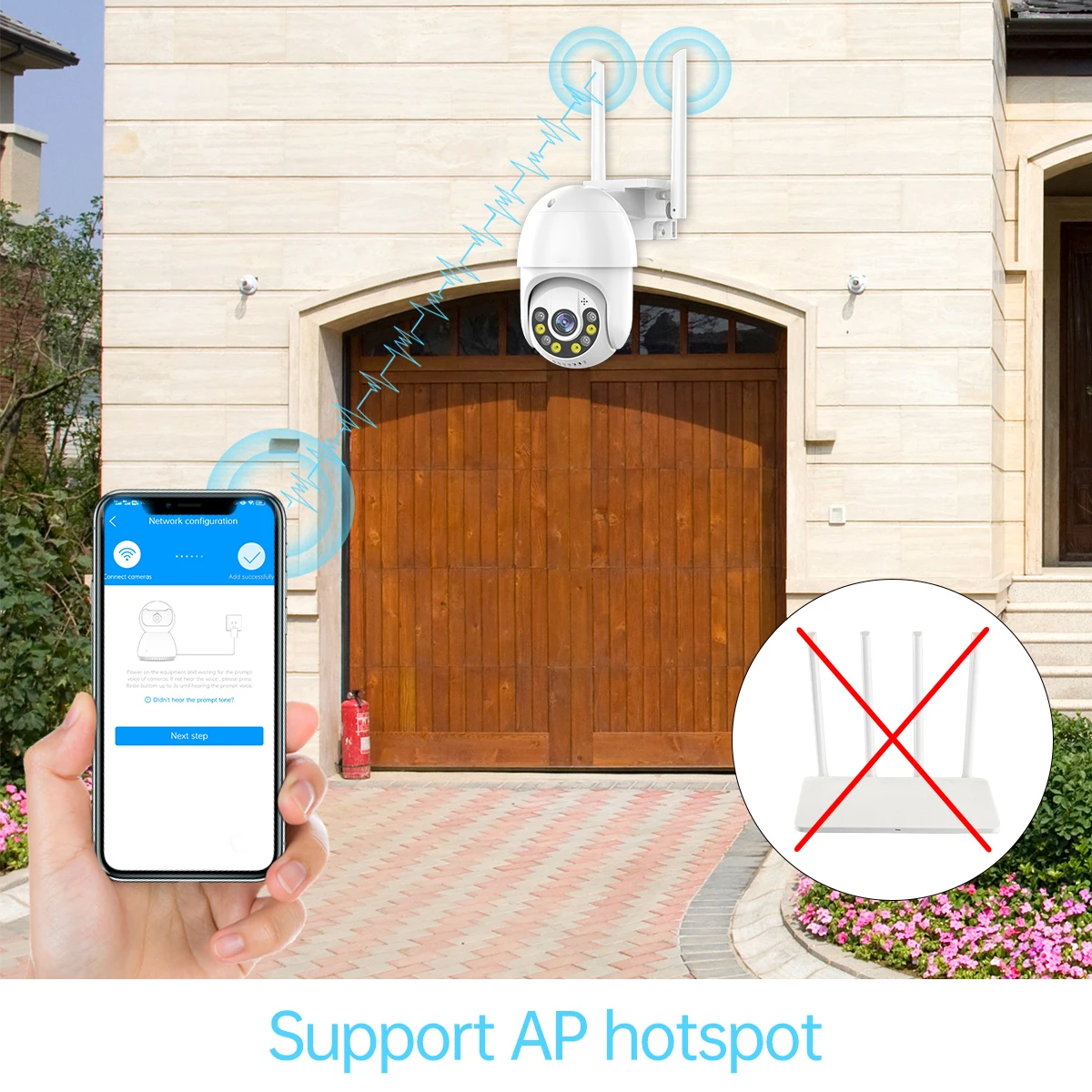

● Support AP Direct Connection / Wireless Connection / Wired Connection;
● WiFi Connection: the camera supports 2.4G HZ or 5G HZ WiFi(no sim card slot, 3G/4G/5G cellular network not supported)
● Wired Connection: the camera with an RJ45 LAN port, you could also connect the camera with the network cable(when you without wifi);
● Support Vision 4 times magnification(only support 4x digital zoom, not 4x optical zoom) ;
● Supports full-time loop recording, when the Sd card is full, the old video will be covered automatically. (not yet Support Motion triggered Recording);
● Support SD Recording:  Max 128G Micro SD card Record, data security is more stable ;

●3MP Resolution: 2304x1296 5MP: 2560*1920

● Ceiling and wall mounting bracket: fits for different of install scenes.

● Free Joolink app or pc software control(VMS, contact us for download URL);

● not support ONVIF protocol, no access for web/http interface (Support Eseecloud / XMEye's NVR or DVR system)

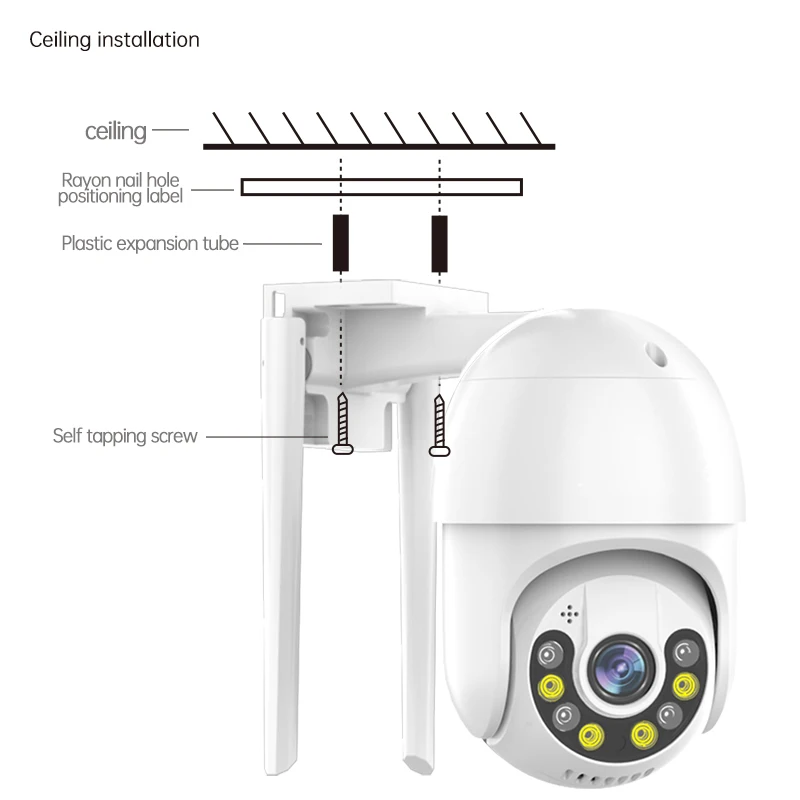

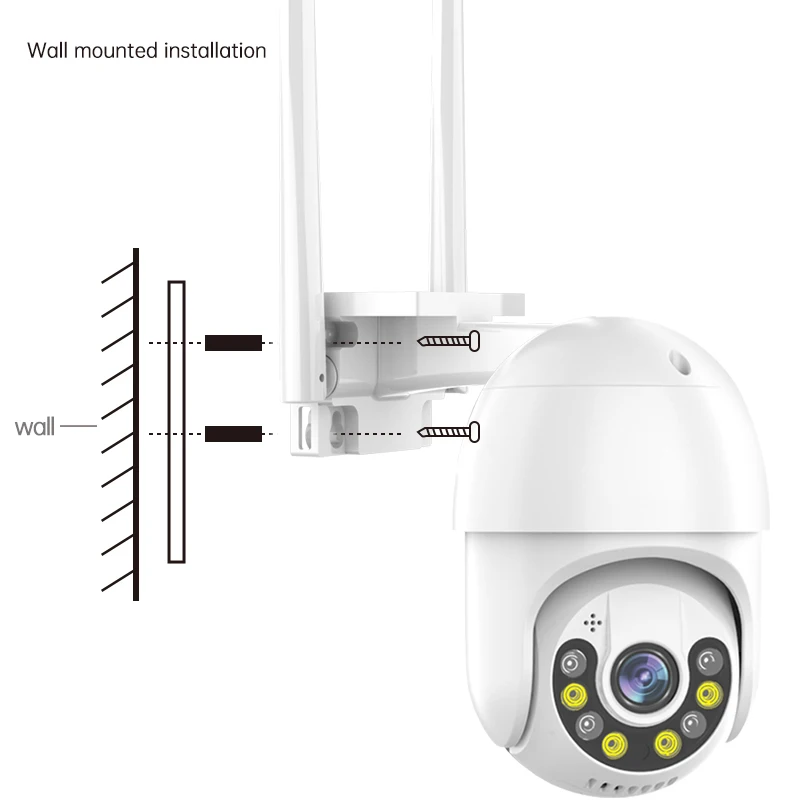

Top & Side Dual Mount Bracket

This camera supports ceiling or wall installation, meet different install scenes.

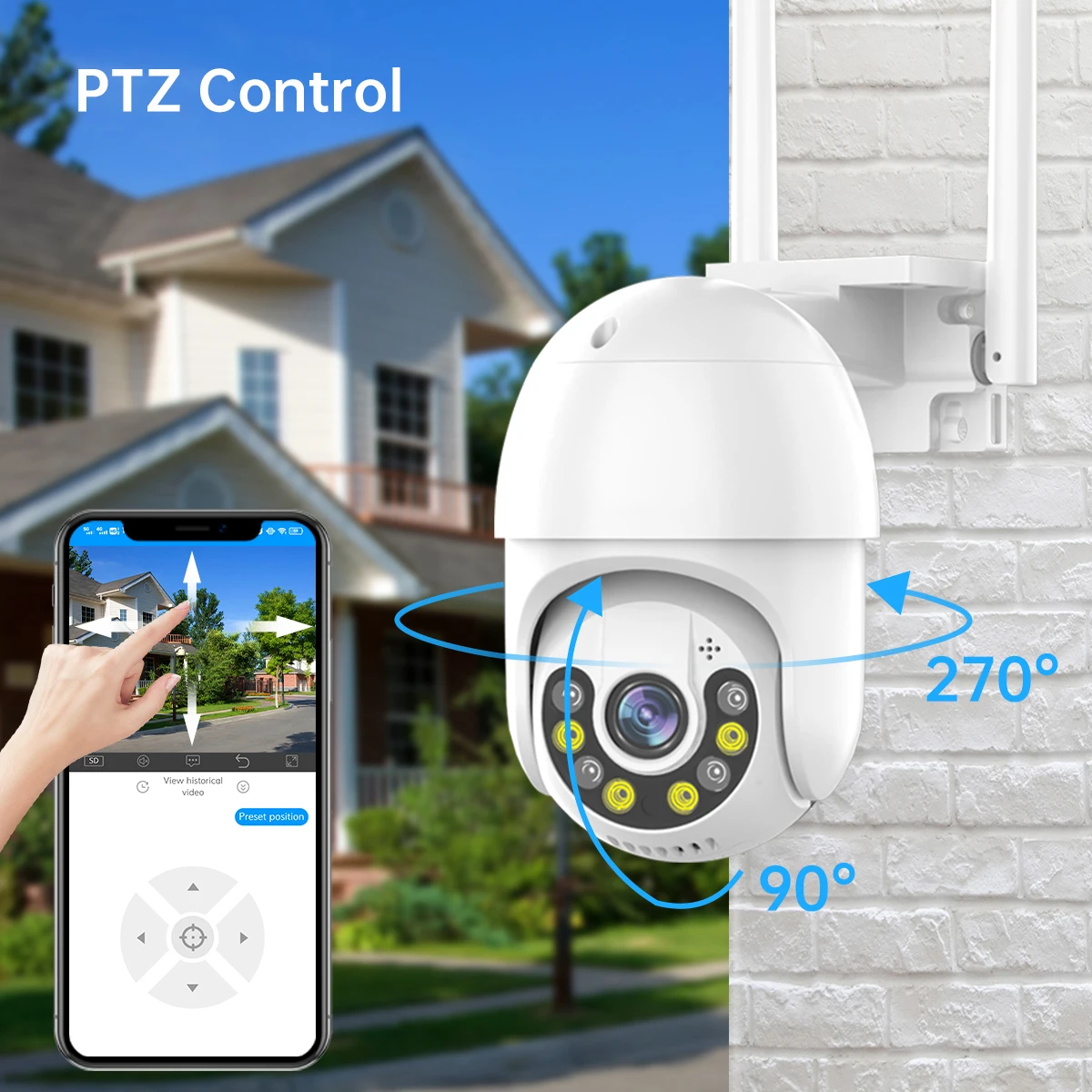

PTZ Rotation Remote Control

3MP camera :270° horizontal viewing angle, 90 °Vertical viewing angle.

5mp camera: 355° horizontal viewing angle, 90 °Vertical viewing angle.

You can monitor your home in all directions. No angle can be out of the surveillance. Digital zoom (4x) function allows you to zoom in to see more details and zoom out to see the entire field of view.

1080P VS 3MP High Resolution

3MP image has more exquisite,better light saturation,lower noise and other advantages

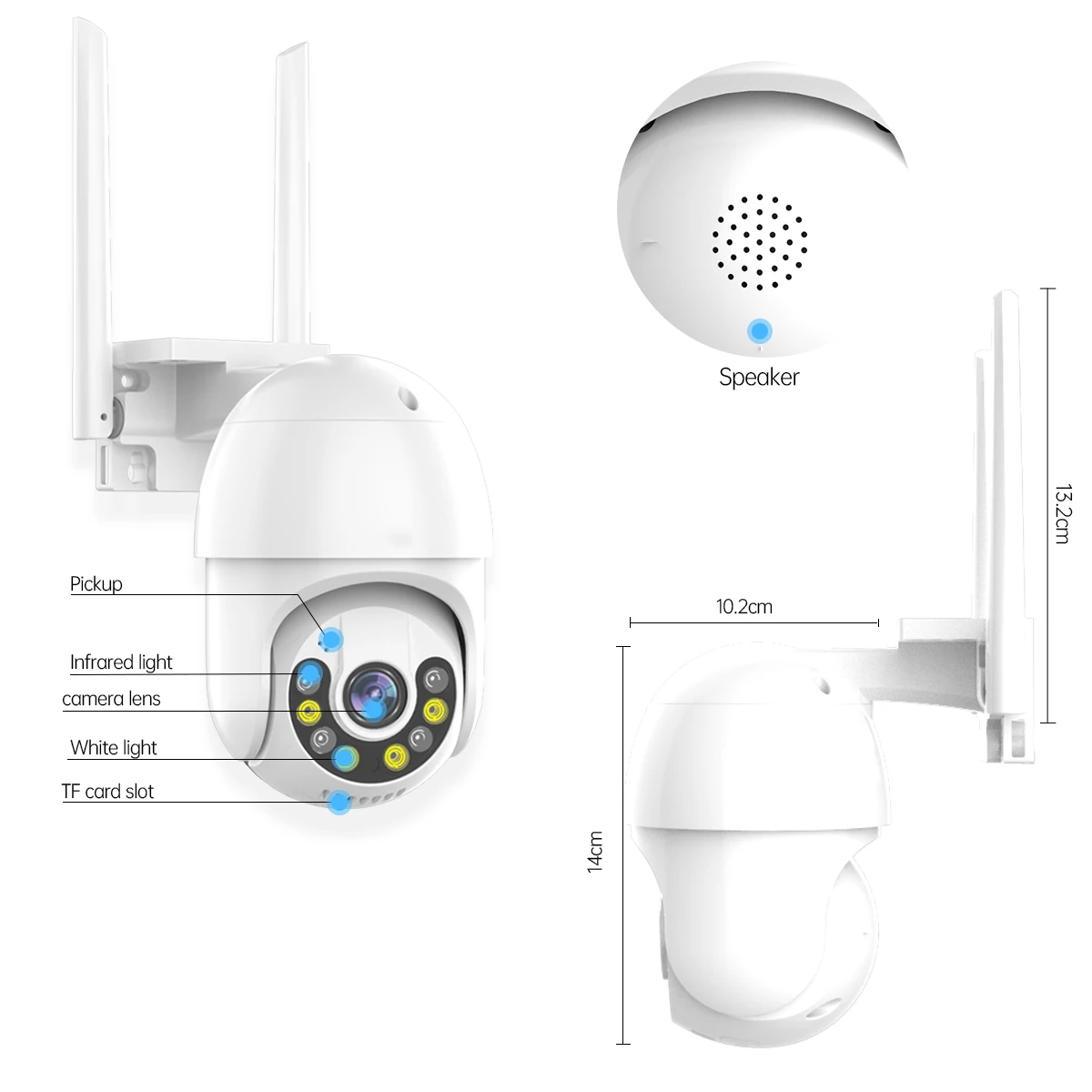

Clear Two Way Audio

Camera is built in microphone and speaker. This outdoor security camera allows you to have stable conversations through the App, you are enable to listen and talk with your families members, guests or scare off intruders when you are not home.

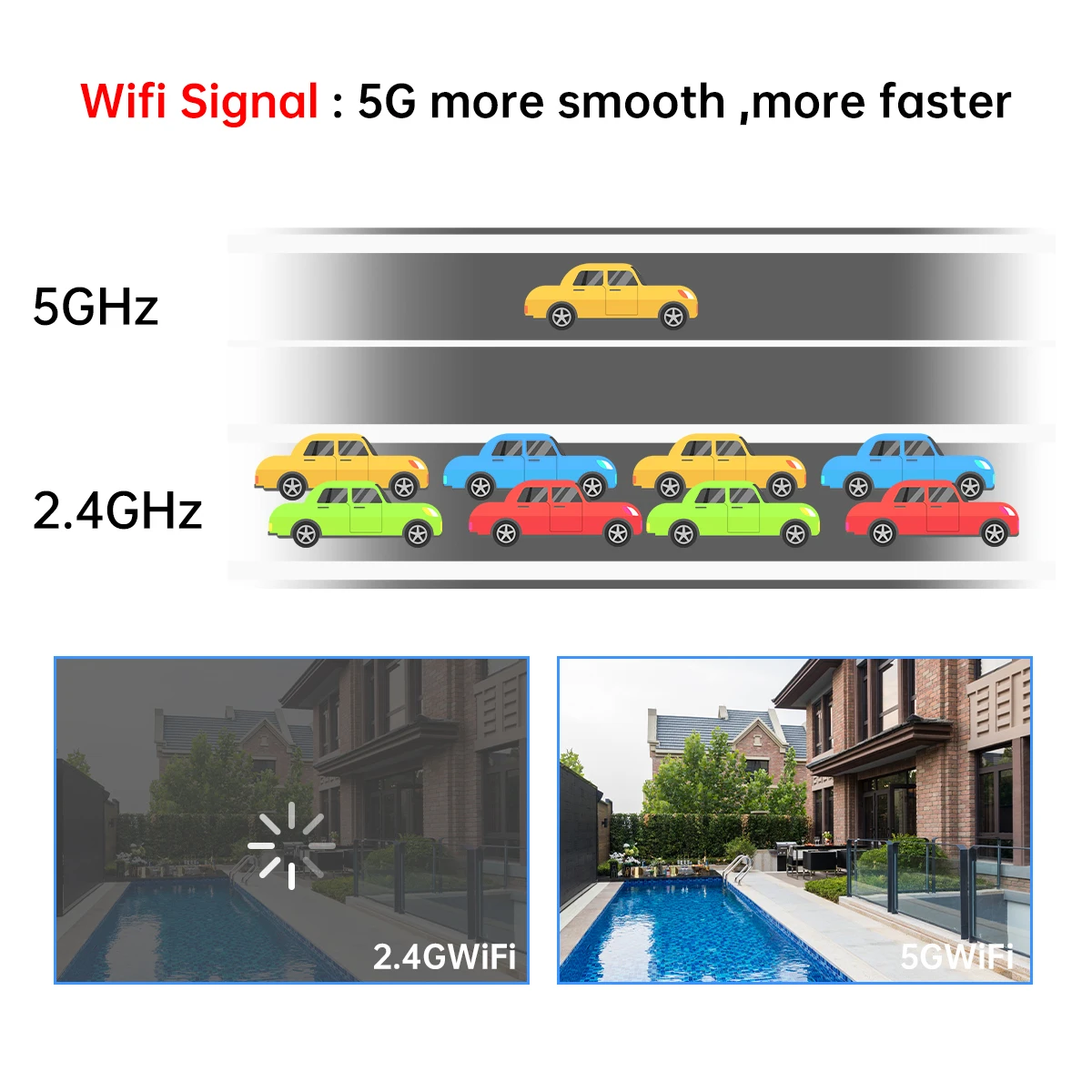

WIFI

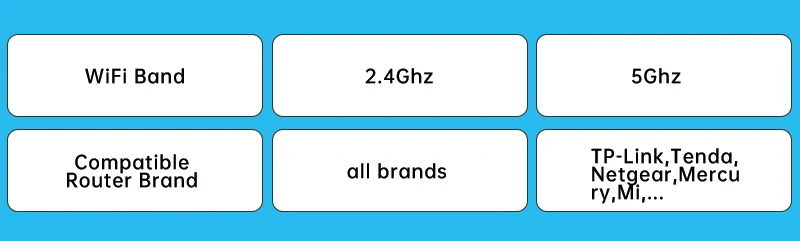

we offer different options of wifi bands: 2.4G/5G

Because 5G is a new WiFi technology and has only been applied to camera security products in the past years, there are many router brands around the world, and the technologies adopted may be different. As a result, some 5G routers may be incompatible with this camera. Please clearly consider and choose carefully before buying.

Currently well-known brands of 5g router(Keep updating):

Tent, Mercury, TP-Link, Netgear, Mi, Lecoo,......

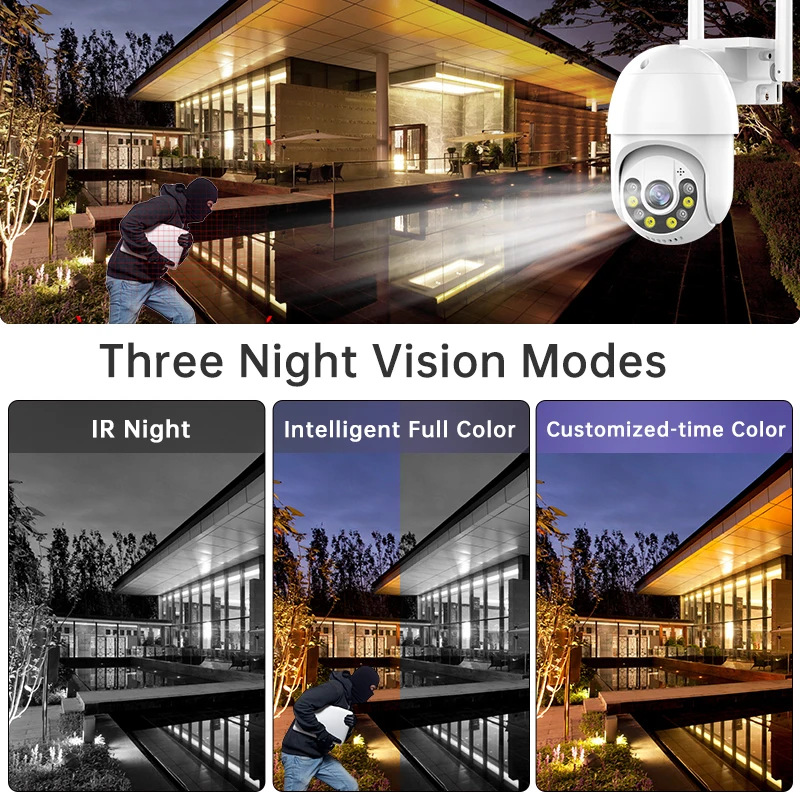

Three Night Modes

1. Switch to Normal night vision mode, the camera 4 infrared lights work. The night monitoring screen is black and white, but the day is color
2. Switch to Intelligent Full Color mode,the camera is infrared night vision as default. when someone walks and trigger the camera motion detection function, the white lights will be turned on and the infrared light will be turned off, and the full-color night vision is immediately switched on, can frighten thief.switch back to infrared night vision after 3 minutes.

4 X Digital Zoom

using hands Press and hold the screen to Zoom in/out to see more details.

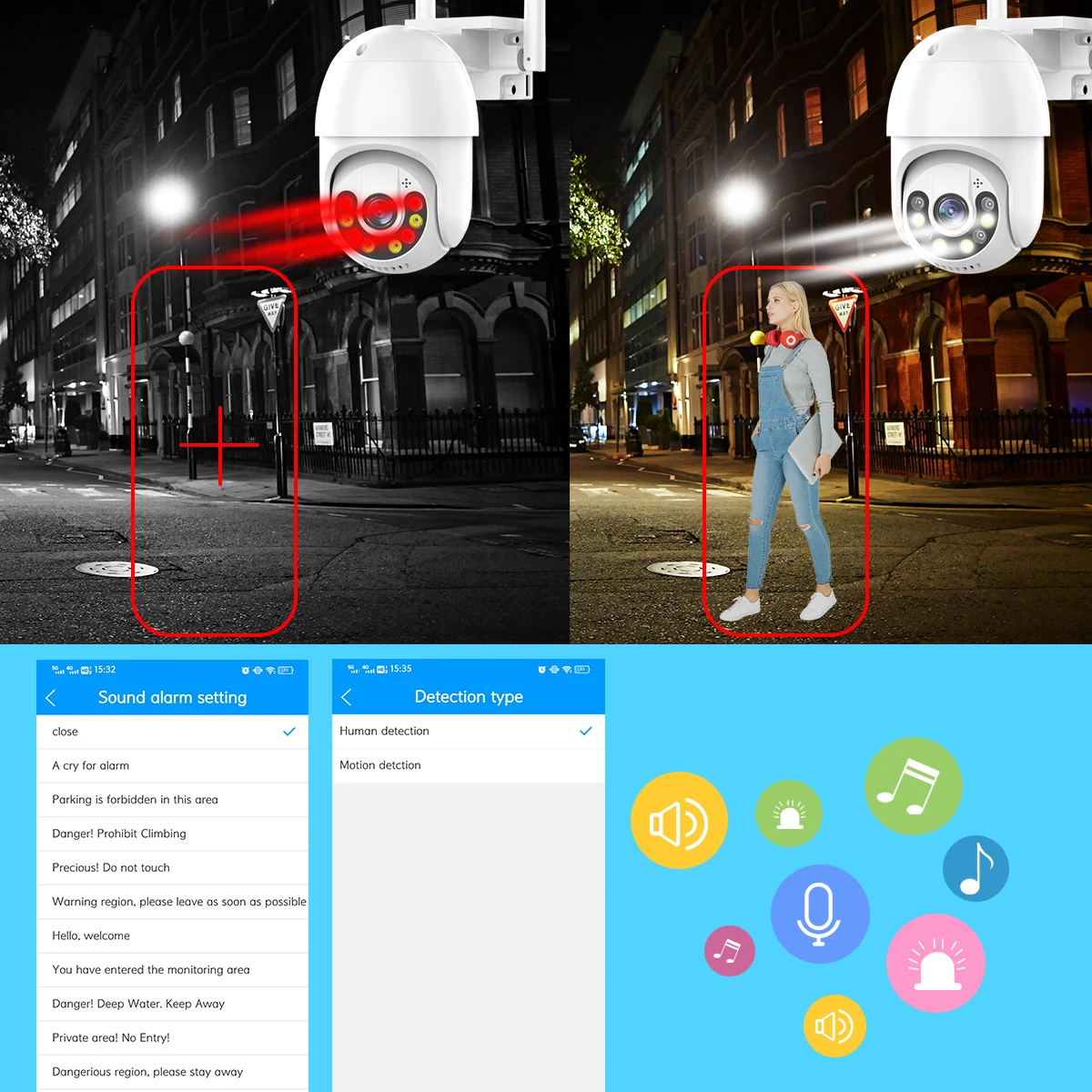

Motion detection and Humanoid tracking

3MP camera have motion detection only, when it detect moving object, it will following the moving object automatically.

5MP has both motion and humanoid detection functions.

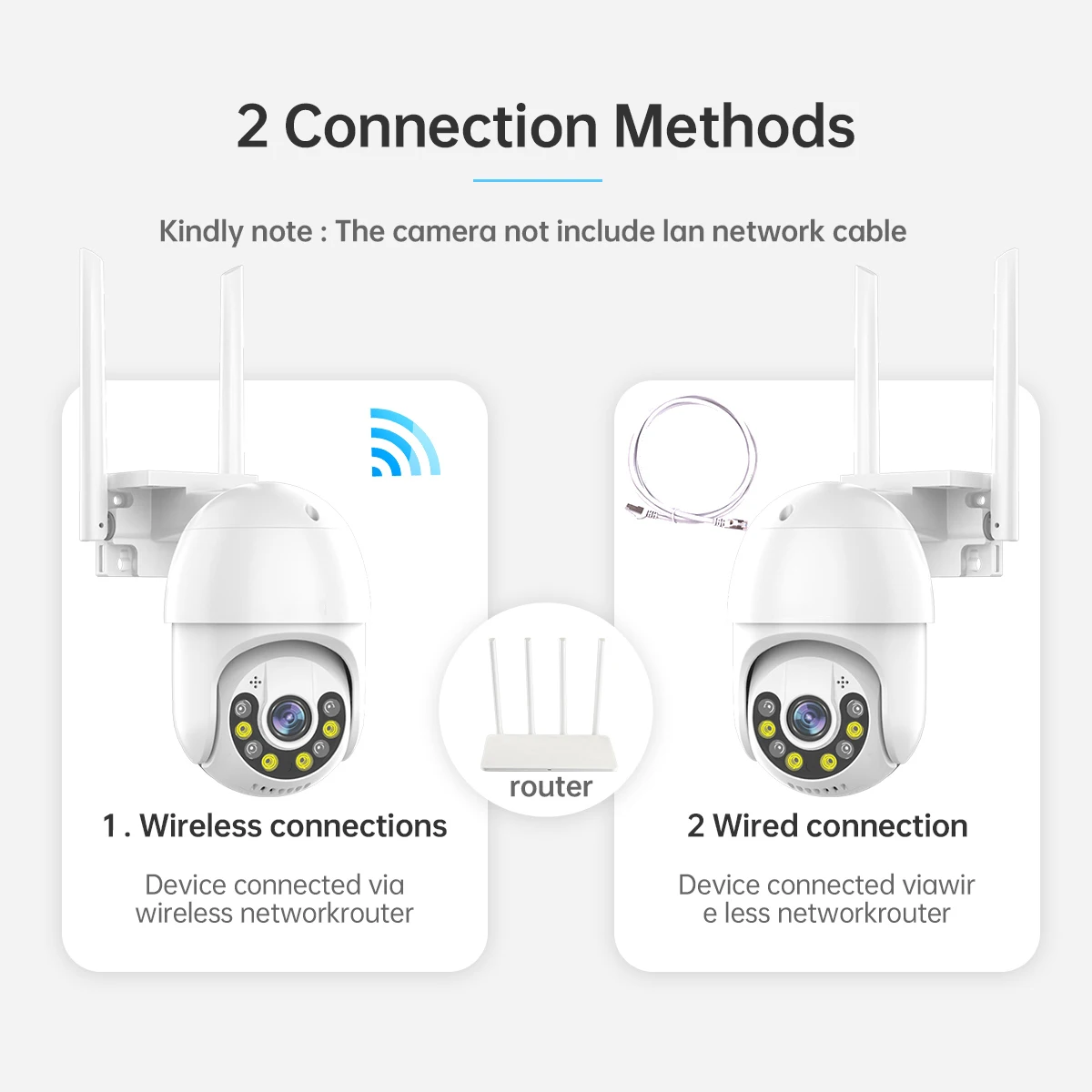

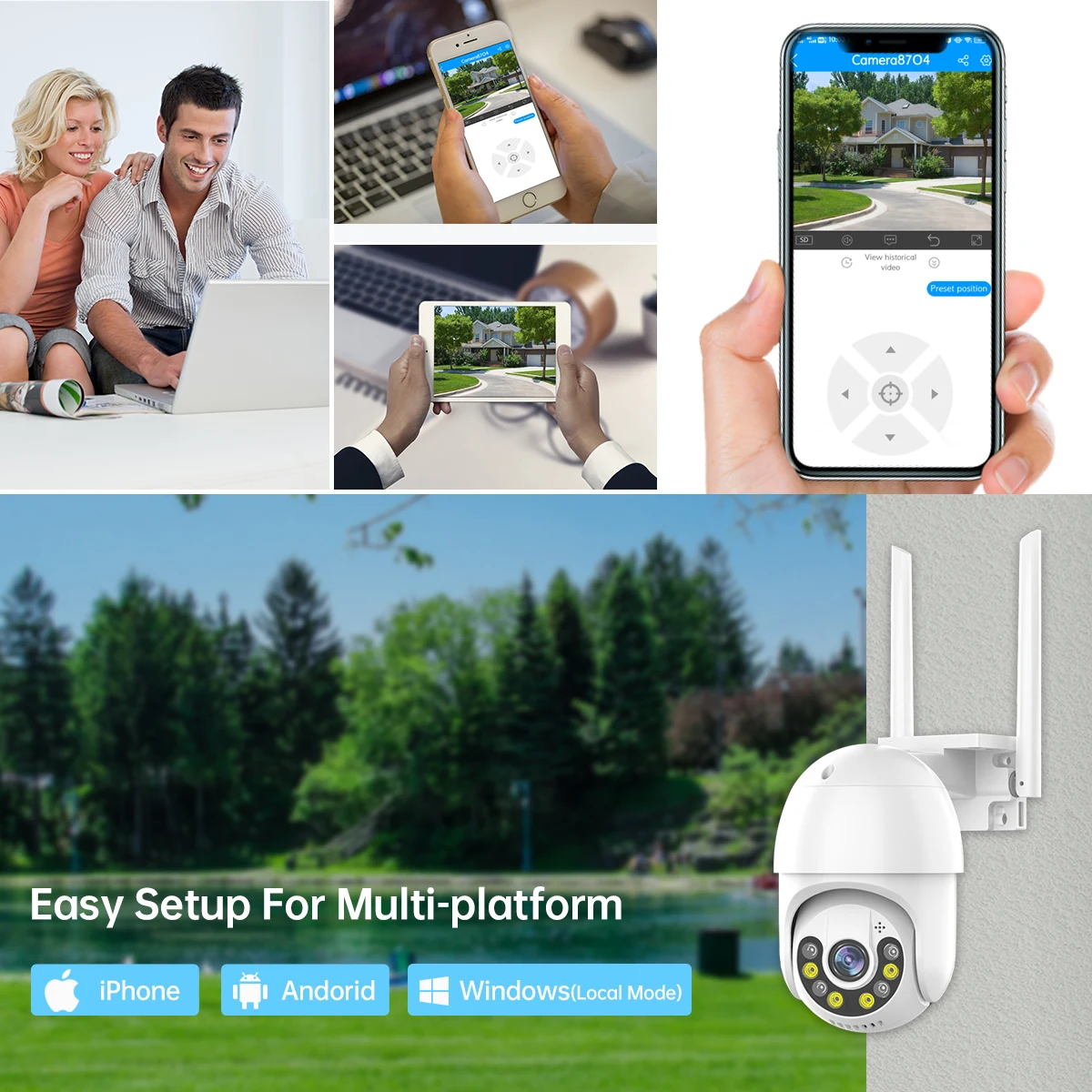

Connection Method

it's fast and easy to connect with your smartphone.You can use WIFI connection or network cable connection

Share and Watch At the Same Time

It supports share with many people watching online at the same time, full of joy. record wonderful moments

Select 'Sharing' to enter the sharing settings and invite others to watch. The person being shared needs to download the Joolink APP, register an account and log in to view.

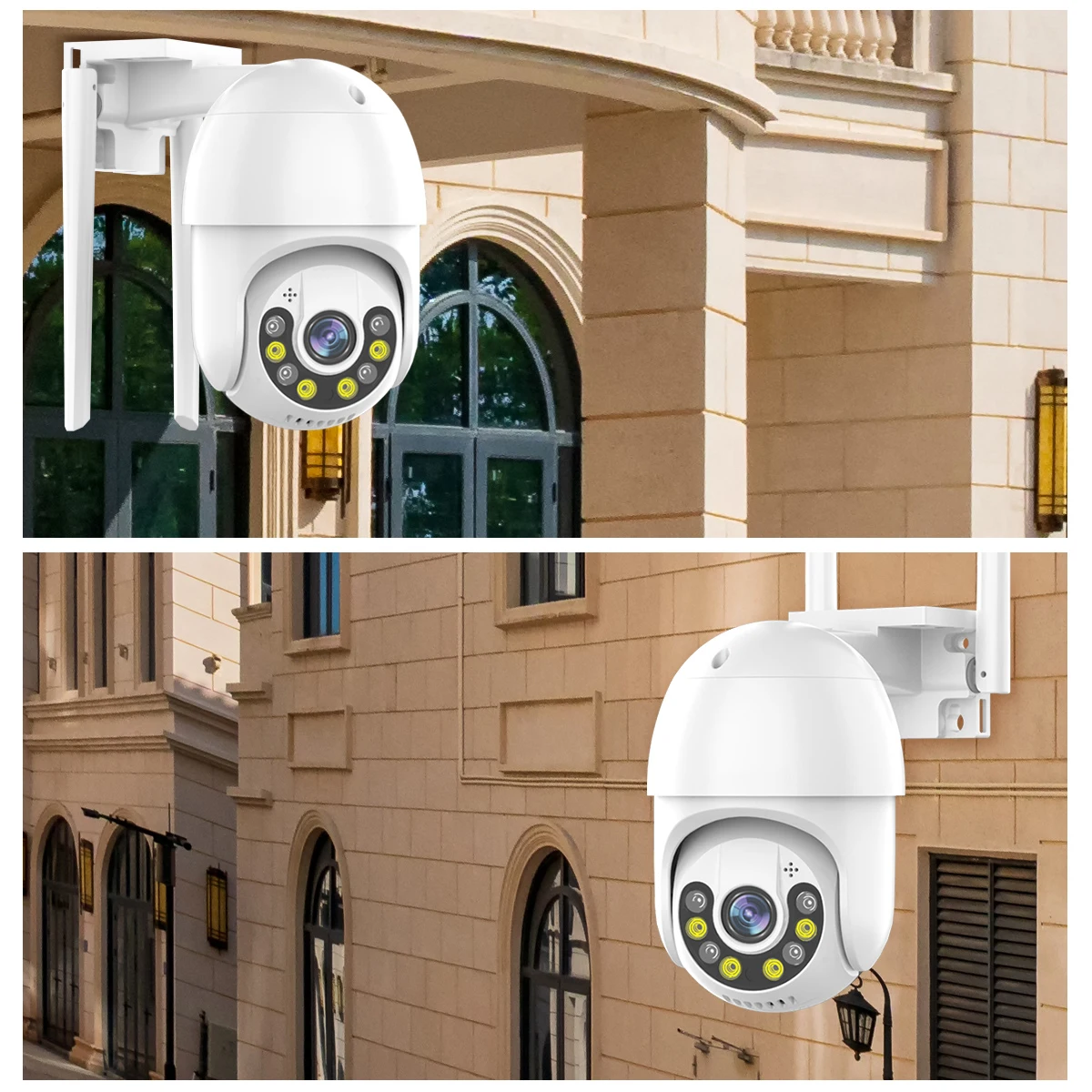

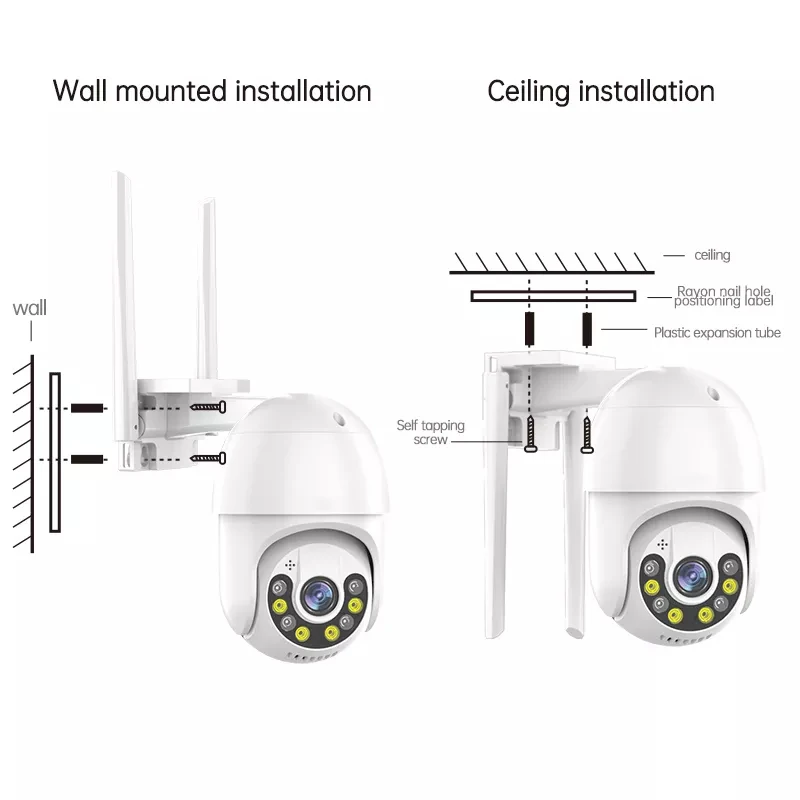

Different installation Method:

supports different installation scenes: wall, ceiling, light pole, ...

IP66 Waterproof & Dustproof

The shell is made of high-grade plastic , which is waterproof, sun-proof and dust-proof. It is suitable for any environment

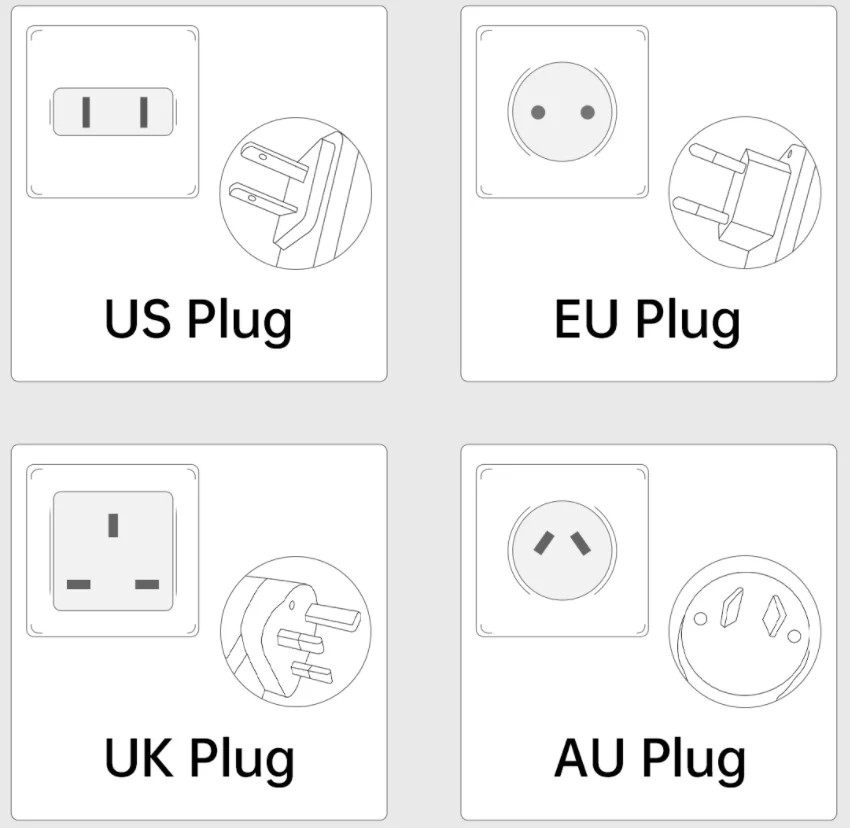

Global power plug for different countries and areas:

3 meters long 12V1A 5.5*2.1mm power plug, please choose the proper type.

Packing List

Option 1: 3MP 2.4G WiFi

1 x 3MP PTZ Camera

1 x Bag of Screws

1 x Quick Installation Guide

1 x Power Adaptor (12V/1A)

1 x Waterproof Lip

Option 2: 3MP 2.4G 5G WiFi 64G:

1 x 3MP PTZ Camera

1 x 64G Micro SD Card

1 x Bag of Screws

1 x Quick Installation Guide

1 x Power Adaptor (12V/1A)

1 x Waterproof Lip

Option 3: 5MP 2.4G 5G WiFi 64G:

1 x 5MP PTZ Camera

1 x 64G Micro SD Card

1x Bag of Screws

1 x Quick Installation Guide

1 x Power Adaptor (12V/1A)

1 x Waterproof Lip

Q&A

Q : How should I do if failed to connect the camera and mobile?

A : 1. Please make sure the camera and mobile is in the same router;

2. Please check the router have the DHCP function enabled, and Connected WIFI is 2.4G /5G;

3. Please make sure the WIFI signal is strong enough at the camera location, higher than 3 cells is much better;

4. If there is no problem mentioned above, but still not work. Please use the pin to press and hold the Reset button for 15s to reset the camera before connecting the camera. You will hear "Camera Reset " at a successful reset, and wait 5-8s you will hear "Camera starting up" then try to connect the WIFI again.

Q : Why I can't get the notifications on my phone?

A : Please turn back to camera setting and check if alarm button on.

Q: Is this a wireless camera, built in battery, no need of power supply?

A: No, it comes with a DC12V 1A power supply, no battery built-in.

Q: Why this camera not supported my Home Assistant or NAS system?

A: This camera only supports XMeye,EseeCloud NVR DVR's ONVIF protocol, other third party not for sure; please contact us for further confirmation.
